Graphite Exhaust Joint Gasket
Graphite Exhaust Joint Gasket - The gasket is made of expanded graphite tape . - Good penetrating and low differential pressure - Strong corrosion resistance,durable - Long time using
DESCRIPTION:
FeiteSeal G180 Graphite Exhaust Joint Gasket
– The gasket is made of expanded graphite tape .
– Good penetrating and low differential pressure
– Strong corrosion resistance,durable
– Long time using

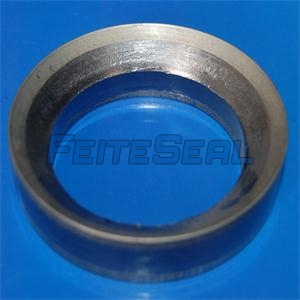

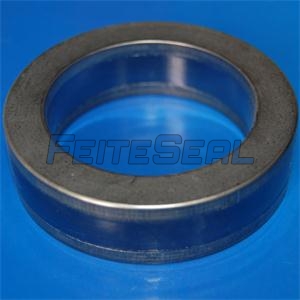

Exhaust Auto Gasket is pressed by metal mesh and high temperature graphite tape, it is with good compression resilient. Meanwhile it is the ideal choice for automotive exhaust system dedicated seals.
Typical Types
Exhaust Joint Gasket
Exhaust Gasket Reinforced Inner Wire Mesh
Exhaust Gasket Reinforced Outer Wire Mesh
Exhaust Gasket Wire Coating PTFE
Full Wire Mesh Gasket
Typical Applications
Gaskets for auto exhaust system.
Parameter of Graphite:
| Item | Standard Data | Test Result |
| Content of Graphite | 99.2% | |
| Tensile Strength | ≥ 4.0mpa | 4.52mpa |
| Tolerance of Density | ≤+/-0.07g/cm3 | 0.983g/cm3 |
| Compressbility | 35%~55% | 42.5% |
| Recovery | ≥9% | 9.96% |
| Ash | ≤ 1.0% | 0.49% |
| Ignition Loss(450ºC) | ≤ 1.0% | 0.65% |
| Sulphur Centent | ≤ 1200ppm | 1170ppm |
| Tolerance of Thickness | ≤ +/- x 7% | +0.019 |
